AMC3 MIDI Controllers
The AMC3+Touch has arrived!
The touch version of the AMC3 is now available.
This new USB MIDI controller boasts an all new "XY touch" mode!
Please take a look at a quick XY mode demo

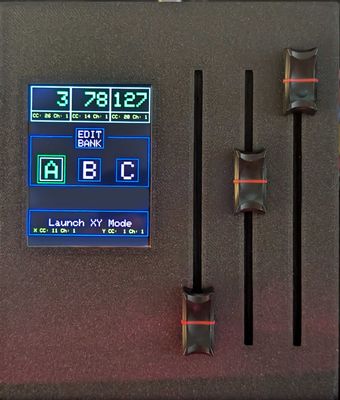

The AMC3+Touch is a 3 x 100mm USB MIDI fader with a full color resistive touch display.
True XY MIDI control is available at your fingertips in the new XY touch screen mode! When XY Touch mode is active the 3 faders are inactive and will not send MIDI data.
This latest version of the AMC3 boasts a completely self contained configuration system that requires no external software for configuring the onboard settings, like CC and CH settings for the faders.
In "Fader Mode" (the default run mode) the full color display tracks the movements of each fader in real time.
There are three "banks" of user defined saved settings that can be instantly recalled with the touch of a "bank" button on the screen.
The "Edit Bank" mode makes it super fast and easy to configure every setting to your liking.
This latest version requires a USB C cable. You will need to supply your own USB-C cable to plug into the AMC3+Touch.
The cable can be either USB-C to USB-C or USB-C to USB-A. The AMC3+Touch end must be USB-C.
The AMC3+Touch can never be plugged into a USB charger, so be careful! The connection must be either:
1.) directly to a computer USB port (Type A or Type C)
2.) via a USB hub connected to your computer
If there is ever a need to update the firmware (for example to implement new touch features), end users can flash the new firmware to the AMC3+Touch device.
Make Music, Not War
What is the AMC3?
What is the AMC3?
The AMC3 is a 3 fader, USB MIDI controller, with a LED display, featuring user programable MIDI CC# and MIDI Channel.
The 100mm throw of the genuine Bourns faders gives the AMC3 the expressive range you need for realistic orchestral performances and MIDI programming in any DAW.
Product Specifications
Product Specifications
The AMC3 is a class compliant, USB device that will work on Windows and MAC OS. (Not tested on Linux.)
The plug and play, USB powered, micro controller of the AMC3, converts the analog signals from the faders into MIDI over USB.
The machined ABS chassis is a zero fingerprint black finish. It's fully sealed and completely dust proof!
A double sided PCB supports the electronic components of the AMC3, which is hand assembled here in the USA.
The 100mm Bourns faders come complete with a felt dust shield on every fader for long lasting performance.
The 3 digit LED displays the MIDI value (0-127) of the most recently moved fader, giving you instant visual feedback in your choice of blue or red. The LED intensity (brightness) is also user configurable.
The AMC3 requires a USB A to A cable (male at both ends) - they are included with every order.
The unit body is 5 x 7, about an inch deep.
We've got you covered
We've got you covered
The AMC3 comes with a 1 year (from date of purchase) electronics limited warranty that is fully transferable. Every AMC3 is unique and we stand behind each unit, regardless of who is sliding the faders.
The AMC3 comes with a 30 day, NQA return policy, which will cover the cost of the unit, minus shipping.
Field programable settings
Field programable settings
The AMC3 is field programable using a simple USB, serial interface. We use Tycommander (open source and free) to allow you to talk to the AMC3 when you need to. (Windows and Mac compatible.)
You can control each fader independently and assign each one a CC# and a MIDI channel.
You may also set the LED intensity, to better match the lighting of your room.
The simplest and fastest way to program your AMC3 is to send it a file containing your chosen settings. For example, I have a file that contains my Spitfire Audio settings and another for my Kontakt settings. It's up to you how you manage your settings, but you can quickly and easily switch between your configs, which are saved in the AMC3 onboard memory. We'll show you how - it's fast and easy!
Firmware Updates: if updates are available, the AMC3 firmware can be updated via Tycommander's bootloader.
